3500N RTP Machine High Tensile Strength 750 Psi Anti Corrosion

3500N RTP Machine High Tensile Strength 750 Psi Anti Corrosion

3500N RTP Machine

750 psi RTP Machine

Anti Corrosion RTP Machine

Place of Origin:

China

Brand Name:

Goldstone

Model Number:

SRTP 315

Contact Us
Request A Quote
Product Details
Product Name:
10 Inch RTP Line
Feature:
10 Inch
Reinforcement:
Steel Cord
Standard:
API-15S
Diameter:
50-315 Mm, 2 Inch To 10 Inch
Pressure:
5 MPa To 20 MPa, 750 Psi To 3000 Psi
Type:
RTP Pipe
High Light:

3500N RTP Machine

,

750 psi RTP Machine

,

Anti Corrosion RTP Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Product Description

10 Inch 3000psi Steel Reinforced RTP Line For Flexible Onshore Pipe

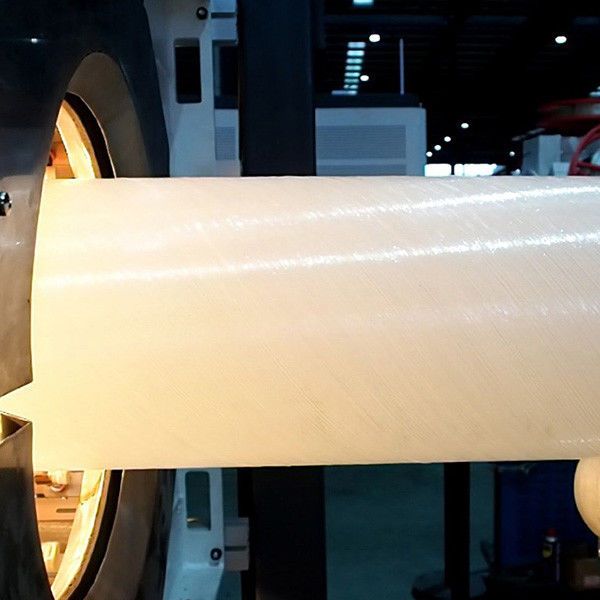

Steel reinforced SRTP pipe



SRTP complied with the provisions of API 15S, uses the high strength steel cord fabricated tape to be the reinforcement. The SRTP pipe offers high pressure resistance and it is flexible for coiling into spool. It is less cost than expensive none metal fibers like Kevlar and Carbon, and has better temperature against characterizes compared with glass fiber. With Goldstone enhanced anti corrosion liner tube design, high strength SRTP pipe could be a kind of valuable pipeline for some particular applications for onshore transportation and one of the better option for bigger diameter RTP pipeline. Goldstone can supply the high qualified steel cord tape for RTP manufacturers.





3500N RTP Machine High Tensile Strength 750 Psi Anti Corrosion 0





3500N RTP Machine High Tensile Strength 750 Psi Anti Corrosion 1

High Strength Steel Cord



3500N RTP Machine High Tensile Strength 750 Psi Anti Corrosion 2

It is made of qualified high carbon steel with surface coating, drawing, twisting and other processes. The steel cord is one of the main framework materials of car tire. Steel cord is classed from normal strength (NT) to high strength (HT), and super high strength (ST) and ultra high strength (UT). We normally select HT and ST for RTP pipe.


Features: High tensile strength up to 3500N. The steel cord is made of multi strands of fine steel wire with excellent softness after surface treatment, the anti-corrosion performance of the steel is significantly improved.





3500N RTP Machine High Tensile Strength 750 Psi Anti Corrosion 3     3500N RTP Machine High Tensile Strength 750 Psi Anti Corrosion 4

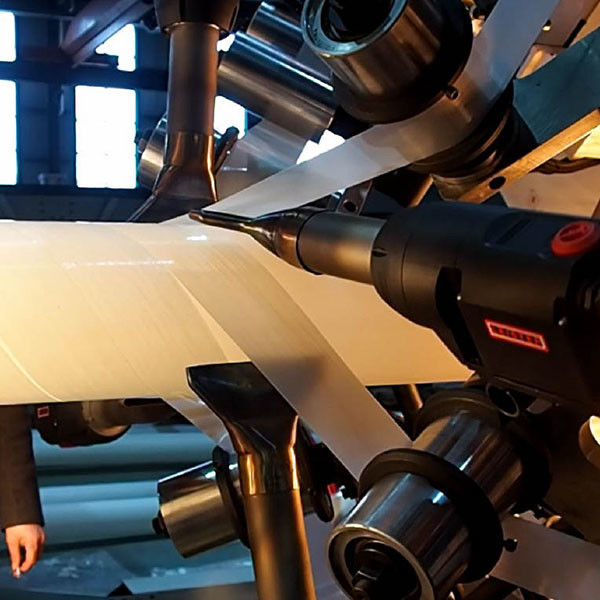

Through the tape making machine and technology developed by Goldstone, numbers of steel cords are bonded with polyethylene and made into a reinforced tape.



3500N RTP Machine High Tensile Strength 750 Psi Anti Corrosion 5   3500N RTP Machine High Tensile Strength 750 Psi Anti Corrosion 6



3500N RTP Machine High Tensile Strength 750 Psi Anti Corrosion 7

The high-strength steel cord has dia. 0.8-1.5mm, and the pre-made tape thickness is 1.0-2.0 mm. After wound 2-4 layers of steel cord on the pipe then can meet the pressure. The equipment investment is smaller and the process is relatively simple. Under the highe

r temperature, the performance is obviously better than glass fiber tube. Additional, the high elongation of steel allowed the reinforced tube more flexible for coiling.



According to the provisions of API15s for metal reinforced RTP, the design safety factor can be used 0.5. In the practical, the pipe factory usually choice 2.25 times operation pressure as the burst pressure.
