SRPCP Plastic Pipe Extrusion Machine 190000 Mpa 3000 Mm

1 set
USD 400,000 to 1 million
SRPCP Plastic Pipe Extrusion Machine 190000 Mpa 3000 Mm
Features Gallery Product Description Request A Quote
Diameter: 300-3000 Mm
Type: Structure Wall
Process: Spiral
Material: HDPE Composite
Application: Sewer And Drainage
High Light:

Production spoolable rtp machine


SRPCP Plastic Pipe Extrusion Machine


3000 mm Plastic Pipe Extrusion Machine

Basic Infomation
Brand Name: Goldstone
Model Number: TL-2000
Payment & Shipping Terms
Delivery Time: 3 months
Product Description

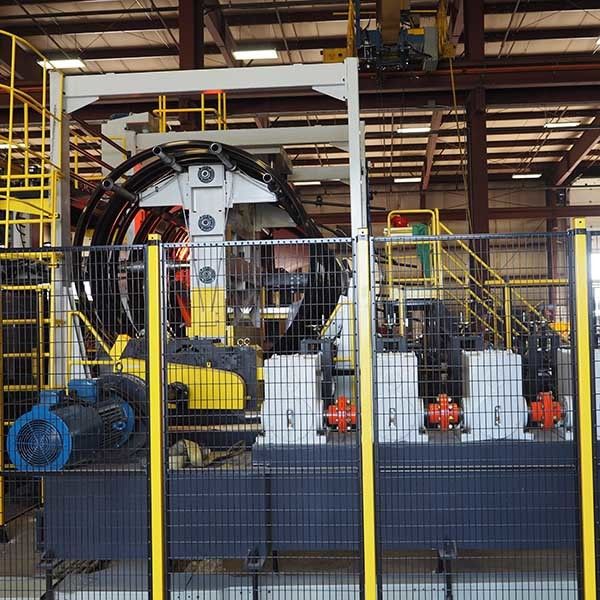

steel reinforced spiral structure wall corrugated pipe machine for sewage drainage waste water


The elastic modulus of carbon steel is almost 200 times higher than polyethylene; its value is about 190,000 Mpa however the polyethylene is around 800Mpa only. So if we can combine the advantages of both steel and plastic, that will be an ideal method to get a perfect pipe with high stiffness and less cost. The question is how to compose two kinds of material in a good way, keep their benefits but avoid the defects, to let them complement each other. There are many manufacturers are researching the answer of this question, among them, the SRPE pipe is absolutely a relative nice and successful solution for the composite pipe proved by mass evidences since 2003.


SRPCP Plastic Pipe Extrusion Machine 190000 Mpa 3000 Mm 0SRPCP Plastic Pipe Extrusion Machine 190000 Mpa 3000 Mm 1

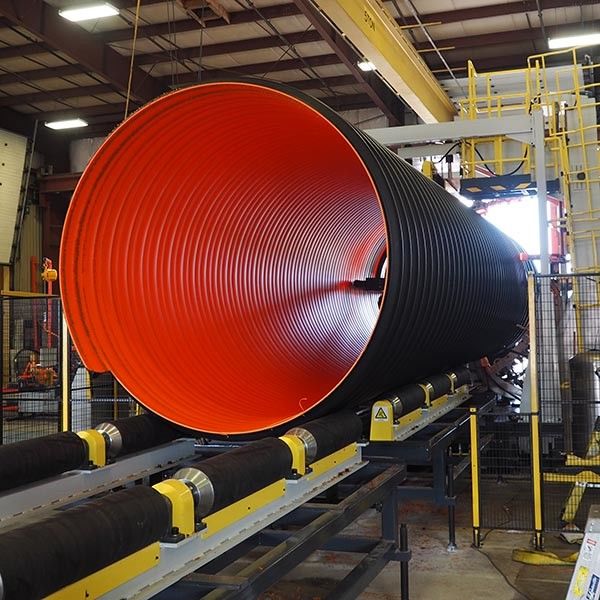

At present the composite pipe has been widely used in many applications and various steel-plastic composite pipes have been developed. The Steel Reinforced Polyethylene Spiral Corrugated Pipe (SRPCP pipe) is one of the best solutions among those pipes, which has been researched by Goldstone company with Chinese patent. It is a great technical innovation to use the steel-plastic composite construction instead of the single material (plastic) for sewage and drain pipe system. The new composed structure brings many advantages like higher stiffness, less weight, low cost, large diameter, etc.


The diameter of the pipe is from 300 mm (12 inch) up to 3200 mm (126 inch). The obvious advantage of the new composite pipe is the high stiffness and low cost if compared with the universal buried plastic sewage pipe. The ring stiffness reached SN8 to SN16, which is a surprise value for other plastic pipes. This pipe meets ASTM 2435-12 standard and Israel, Italian standard, Chinese national standard etc.
