200mm Corrugated Pipe Machine Steel Reinforced SN8 SN16

200mm Corrugated Pipe Machine Steel Reinforced SN8 SN16

SN16 Corrugated Pipe Machine

200mm Corrugated Pipe Machine

Reinforced Corrugated Pipe Machine

Place of Origin:

CHINA

Brand Name:

Goldstone

Certification:

CE, UL, CSA

Model Number:

GS/TL-3000

Contact Us
Request A Quote
Product Details
Pipe ID:
200mm-3000mm
Ring Stiffness:
SN8-SN20
Application:
Sewage/Drainage/Water Tank
Joint:
Water-tight/Soil-tight
Highlight:

SN16 Corrugated Pipe Machine

,

200mm Corrugated Pipe Machine

,

Reinforced Corrugated Pipe Machine

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
500,000USD/set-1,500,000USD/set
Packaging Details
Seaworth Package
Delivery Time
4 months
Payment Terms
L/C, T/T
Product Description

SN8 SN16 200mm 3000mm Steel Reinforced Corrugated Pipe Machine





Compared with the traditional steel pipe and concrete pipe, the plastic pipe shows the big advantages, such as anti-corrosive, less leakage, light weight and easy installation. But the serious disadvantage of the plastic pipe is the low elastic modulus, e.g. polyethylene EP value is about 800 Mpa. While the elastic modulus of carbon steel is about 190,000 Mpa, which is almost 200 times higher than polyethylene. As well, the price of steel is half of the polyethylene. So if we can combine the advantages of steel and plastic into a composite pipe, that will get a perfect large diameter pipe with high stiffness and less cost.

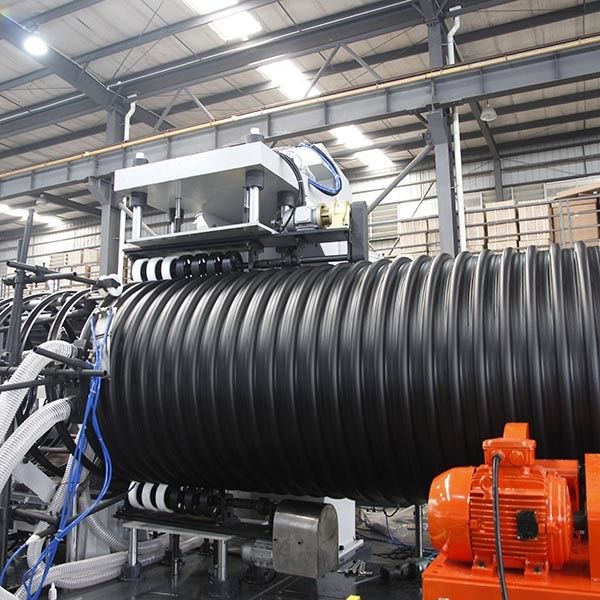

200mm Corrugated Pipe Machine Steel Reinforced SN8 SN16 0



Since 2003, Goldstone Orient company has developed the innovated conception of steel reinforced corrugated pipe (SRPCP) with its owned technology. With the powerful steel reinforced corrugated rib, the pipe stiffness was raised to SN16 or higher while the pipe diameter can reach maximum DN3000.

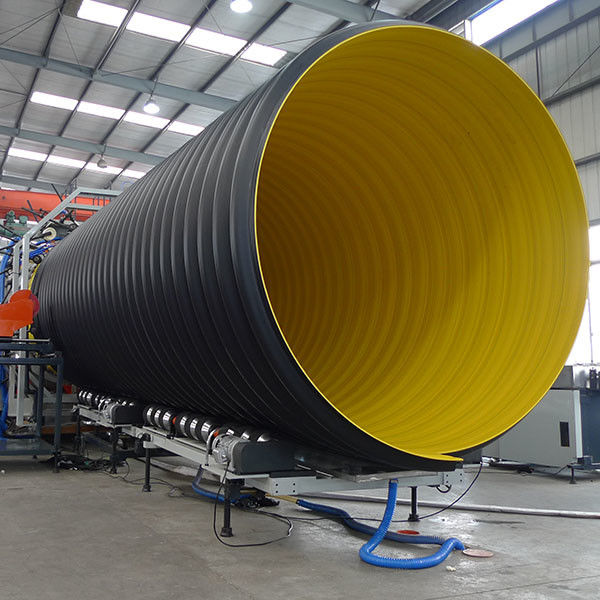

200mm Corrugated Pipe Machine Steel Reinforced SN8 SN16 1



1) High Ring Stiffness



The new composite pipe can provide ring stiffness of SN8, SN12.5 and SN16 generally; even higher stiffness could be made if necessary. The pipe ranges from DN300 mm till DN3000 mm, suitable for various buried storm water system and drainage & sewage water system. Stiffness of SN8 could be provided to whole series of pipes.



2) Saving Material Cost



The new reinforced structure pipe can save material cost obviously. When pipe diameter is over DN1000, SRPCP pipe can save nearly 50% of the total materials cost when it is compared with other plastic sewage pipe in same stiffness.

200mm Corrugated Pipe Machine Steel Reinforced SN8 SN16 2
