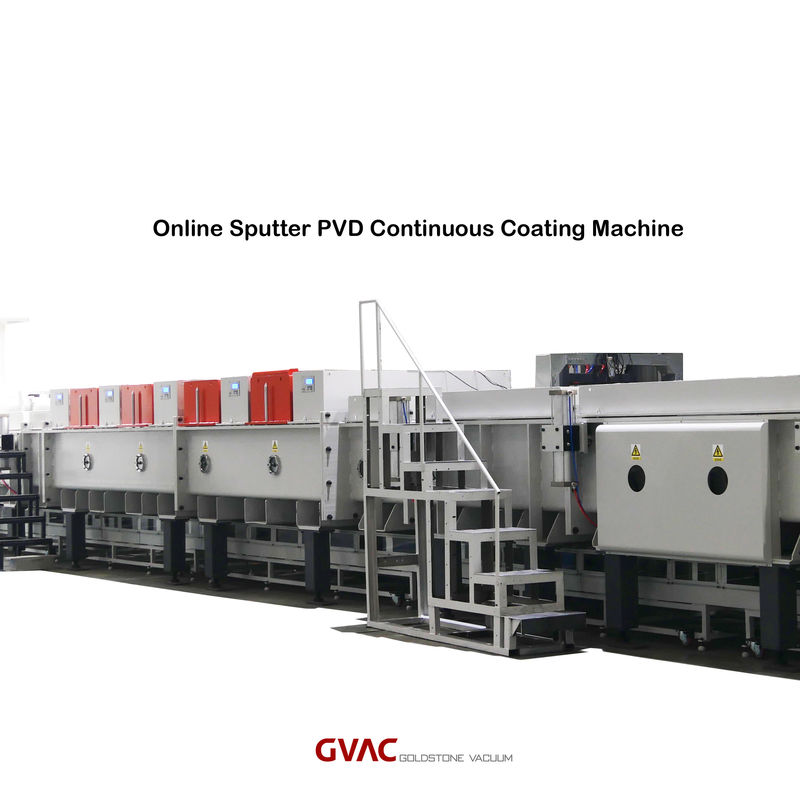

The magnetron sputtering coating system could be applied in either architecture reflective glass, or mirror and decoration colorful glass. The well designed large area sputtering cathode can make coating on glass with max. size of 2540×3660mm. The optimized design and precise manufacturing can guarantee to get a higher vacuum and a shorter cycle time by using a smaller pumping system. Modular design of the sputtering chamber, easy to achieve the multiple layers coating with different material and process gas.
We provide types of sputtering cathode for customer for customer selection, such as planer cathode, rotary cathode and dual-mag cathode.
SPECIFICATION
| Model | Max. Glass Size (m) | Cycle time (min.) |
Output per year (6,000 hours) |
Cathodes | Coating Chamber |
| MSGC1830 | 1.83X2.44 | 5 | 320,000 m2 | 3 | 1 |
| MSGC1830 | 1.83X2.44 | 2 | 800,000 m2 | 7 | 3 |
| MSGC2440 | 2.44X3.66 | 5 | 640,000 m2 | 3 | 1 |
| MSGC2440 | 2.44X3.66 | 2 | 1,600,000 m2 | 7 | 3 |
