1600mm PVD Vacuum Coating Machine / Equipment Magnetron Sputtering Horizontal Continuous

1600mm PVD Vacuum Coating Machine / Equipment Magnetron Sputtering Horizontal Continuous
Features Gallery Product Description Request A Quote
Features
Specifications
Process: Magnetron Sputtering
Width: 800- 1600 Mm
Length: 1500- 3000 Mm
Type: Horizontal Continuous
Coating Layer: Multiple Layers
Applications: Head Light, Rear Mirror, Logo, Decoration Parts, Chrome Coating
High Light:

1600Mm Vacuum Coating Machine

,

Horizontal Vacuum Coating Machine

,

PVD Vacuum Coating Equipment

Basic Infomation
Brand Name: GVAC
Model Number: GSVC-1500
Payment & Shipping Terms
Product Description

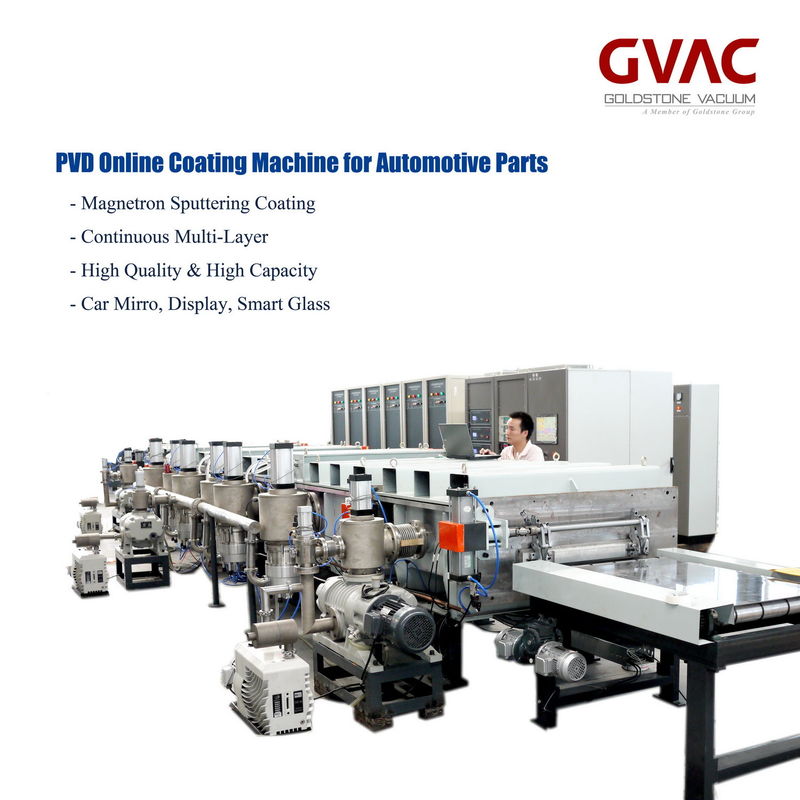

PVD Magnetron Sputtering Machine Continuous Coating For Automotive Parts Chrome Plating Decoration Reflection Coating



Goldstone is engaged to develop the professional vacuum sputter deposition system for customers’ flexible applications. The automobile mirror coating machine is designed for high quality front surface mirror and blue mirror.



Goldstone is engaged to develop the professional vacuum sputter deposition system for customers’ flexible applications. The automobile mirror coating machine is designed for high quality front surface mirror and blue mirror.

1600mm PVD Vacuum Coating Machine / Equipment Magnetron Sputtering Horizontal Continuous 0





The front surface reflection (FSR) technology can avoid the ghost shadow caused by two times reflective firstly on glass surface and secondly on reflection film surface. The image on the FSR mirror is more clear and true than normal mirror. So the FSR mirror has been widely applied in automobile rear view mirrors. The continuous sputtering line with multiple chambers can produce the chrome coated FSR mirror for car in a high speed. Compared with vertical chamber machine, it gives better coating film quality and larger output, suitable for mass production.



The machine can also be designed to produce the mirror with multiple layers of thin film, the Interference light shows blue color which is very comfortable to human eyes. So the drivers cannot see the dazzling light reflected from the blue mirror and then make the driving at night more safety.



Goldstone Vacuum Tech has developed the professional machine for car mirror both the rear view mirror and side mirror. The machine is in minimal size but give you a high output which is professional design for car mirrors. The coating quality is same as the big sputtering machine for architecture glass but the small machine can save big machine investment and energy cost. It is suitable for small and medium mirror factory to produce the OEM spare parts for vehicle.
